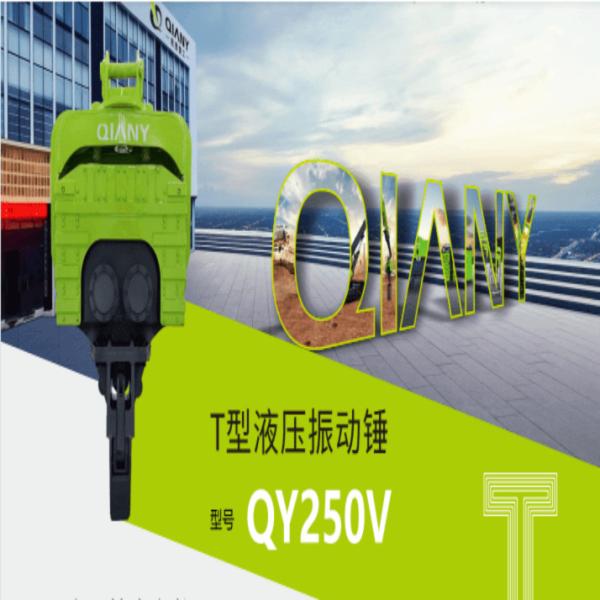

T type hydraulic vibrating hammer - Maintenance item

1.1 L-CKD 220 gear oil is recommended for this machine. The gear oil must be replaced 8 hours after the first use of the new machine, 50

hours after the second operation, and every 150 hours after the subsequent operation. In addition, the gear oil must be replaced after a

long time.The oil consumption of each type of vibration hammer gear is as follows: model/fuel amount

1.2 The metal powder produced by the box in the process of operation, by the magnet magnet suction, keep the gear oil clean, thereby reducing

the magic damage of the parts, so every time the replacement of gear oil must clean the magnet

1.3 The oil return filter element and rotary pipeline filter (oil discharge filter) shall be replaced every 2000 hours after the new machine is used

for 500 hours.

1.4 After 5000 hours of work, check the bearing wear condition and replace it according to the condition. If not replaced, check the bearing

wear condition every 500 hours.

1.5 Fixture 4 pins shall be replaced according to the wear condition.

1.6 The fixture tooth plate should be replaced with a new one according to the apparent wear.

1.7 The 5-in-1 oil valve block shall be cleaned every other year, and the clamping cylinder shall be cleaned every five years. After cleaning, the

seals shall be replaced, and the leak-proof test shall be conducted after assembly.

1.8 The hydraulic tubing must be replaced when the steel wire bare leakage breaks, and the hydraulic tubing must be replaced every five years.

1.9 Vibration hammer seals shall be replaced as appropriate and must be replaced every five years.

1.10 The hydraulic oil must be filtered by professional equipment once every other year, the cleanliness must meet the NAS 8 standard, and must

be replaced when the hydraulic oil is emulsified or has a large amount of impurities, no more than five years must be replaced, the hydraulic

oil label is L-HM 46 anti-wear hydraulic oil.

A T-type hydraulic vibrating hammer is a specialized construction tool used for driving piles into the ground. It is typically used in situations where conventional pile driving methods, such as impact hammers, are not suitable or efficient.

The T-type hydraulic vibrating hammer consists of a vibrating unit, a clamp, and a power unit. The vibrating unit is attached to the top of the pile, and the clamp is used to hold the pile in place. The power unit provides the hydraulic power needed to operate the vibrating unit.

The vibrating unit of the T-type hydraulic vibrating hammer generates high-frequency vibrations that are transmitted to the pile. These vibrations help to drive the pile into the ground by reducing the friction between the pile and the surrounding soil. The vibrations also help to compact the soil around the pile, creating a denser and more stable foundation.

T-type hydraulic vibrating hammers are commonly used in foundation work, such as for bridge piers, high-rise buildings, and other large structures. They are particularly useful in situations where noise and vibration restrictions are a concern, as they generate less noise and vibration than conventional impact hammers.

PRODUCT TECHNICAL PARAMETERS

           Hunan Ruziniu Construction Machinery Co., LTD was established in November 2022 (its sister company Hunan Chaoxiong was established in 2003).The company is located in the beautiful construction machinery capital of China - Changsha City of Hunan Province;Is a major sales of excavators, rigid mining card, road machinery, coal machinery parts;OEM maintenance parts and sales related chassis parts, bucket teeth, excavators, sliding machine operation auxiliary tools agent sales company, sales brands are mainly Sany, XCMG, ZOOMLION, Sunward, Dooshan and other well-known host brands;NEWBRAND, Henkel, Perkins,KPM,QIANY

            NEWBRAND, is a research and development, manufacturing, sales, service in one of the modern professional filter factory.The factory covers an area of 42 mu, the workshop of nearly 31,000 square meters, the registered capital of 30 million yuan, more than 500 employees, with a full set of imported filter element professional production line and supporting imported inspection and testing equipment, the company's technical team is with more than 10 years of professional R & D personnel in the industry, is the filter technology research and development base of South China University of Technology, annual output of all kinds of filter element 10 million.Has passed IATF16949 quality management system certification in 2009;Passed ISO14000 quality management system certification in 2010;In 2019, the company passed the safety management system certification. After years of development, the company has developed more than 800 kinds of products, covering construction machinery, heavy vehicles, luxury buses, ships, diesel generators, air compressors, power plants, environmental protection and purification related industries and many other fields.Products have a long reputation, exported to Europe, the United States, Japan and other dozens of countries and regions at home and abroad, many international well-known host manufacturing enterprises to do OEM supporting, including Sany Group, XCMG Group, SDLG, Liugong, Lonking, Sunward Intelligent, Dongfeng Group, Dooshan Group, Baoer company, Hangzhou forward gear box Group, Sanhe intelligent, Keke power, etc.He has participated in the revision of national industry standards for many times and has played a positive role in promoting market norms

       Authorized dealer of Henkel, Germany, its main products include thread locking agent, pipe thread sealant, plane sealant, anti-bite, cleaning, lubricant, retener, instant drying glue and tools and other more than ten categories of products, mainly applicable to the overall bonding technology and manufacturing process solutions, applied in electronics, automotive, aerospace and biomedicine, engineering machinery and other fields;

          Agent XCMG, Zoomlion, GJ type slide loader and accessories, suitable for infrastructure construction, industrial applications, dock loading and unloading, city streets, residential, barn, airport runway cleaning and other production activities, can also operate large construction machinery auxiliary equipment use;Its supporting equipment is equipped with road maintenance machinery, forestry garden machinery, site cleaning machinery, engineering machinery, etc.Convenient replacement, small investment, really multi - purpose

          Agent sales QIANY Heavy Industry T - type hydraulic vibration hammer.Founded in 2020, the company is a high-tech enterprise focusing on the field of piling machinery.With excellent research and development strength and manufacturing advantages of "Sany" supporting suppliers, the company is committed to becoming an industry leader in the transformation and upgrading of piling machinery to intelligence and environmental protection.The company uses its advanced scientific research technology to develop high frequency hydraulic vibration hammer, T type hydraulic vibration hammer products, fully adapt to the requirements of new infrastructure construction, products fully realize the whole machine localization, with the construction of small seismic sensation, low noise, no interference, high efficiency, multiple functions, adapt to the geological characteristics.Convenient transportation, environmental protection and other characteristics, has been widely used in casting thin wall drum pile, mining, railway, highway, municipal construction, telecommunications and electric power construction and building demolition and other fields.Independently developed new drilling RIGS have also been widely used in photovoltaic drilling, rock drilling and other application scenarios
